Each of our products is produced completely here in our shop. From bending to cutting, everything is done in-house. Here we have three basic designs and we
build off of those with your additional ideas. We can add or delete a wide variety of additions to these models to individualize your particular needs.
Our three designs are based on our proven main frame FLAT TOP bumper.
Our other base model designs are named the BAJA and the BAMBI BASHER. See pictures below for these models.
STANDARD FEATURES
Every bumper we sell is designed for the use any of the winches that have a 4.5” x 10” base mount. These include all winches to 9500# from the major manufacturers,
like Warn Winches for instance. If not sure about an application of a winch you may have, please give us a call.
Mounts for your factory turn signal housings. (Simply bolt them up and plug in the wiring harness)
Solid 1” x 2” steel D-Ring mounts welded inside and outside of the ¼” fairlead mount plate.
The winch mount plate is also ¼” and perimeter welded.
All tube is .120” DOM throughout with all end caps welded and not plastic inserts. Tube diameters range from 1.5” to 2” depending on the application. I realize some
in the industry will say HREW is good but in my experience welded seam tube creates problems if not bent and welded properly so we simply do not spare any expense to
manufacture a quality product that will basically last forever.
All mounts to frame are bolt on and use the same ¼” plate with the exception of the rear rack systems which use ½” plate to mount to the frame. A person can
put some 1” welds for theft protection if needed but is not required for winching.
As for the top plate we offer your choice of smooth metal or diamond plate. These plates cover the entire top of the bumper with the exception of the winch
spool which allows for clear vision when winding winch cable back in.
We do not provide holes drilled for lights but with the plate going all across the top you can put your lights exactly where you would want them, not where
I would want them!
Please see the following pictures for more information on our standard features and just some of the additions and ideas we offer.
-

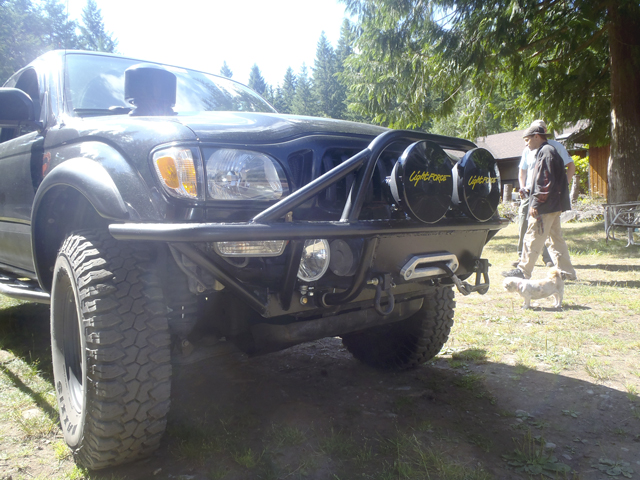

1992-96 4Runner Baja with Lower Bars.
$700.00
-

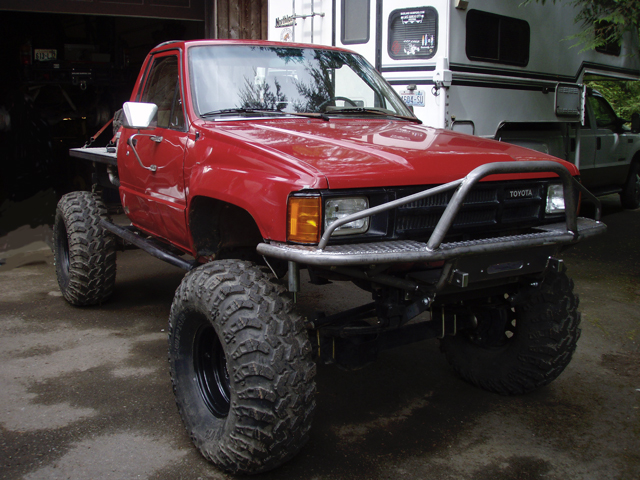

1979-95 Double Main Tube Baja Winch Bumper on 4Runner.
$625.00
-

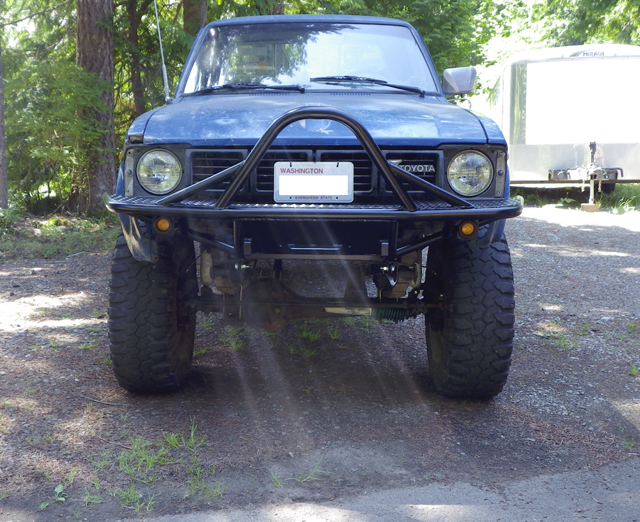

1979-95 Baja Tube Toyota Winch Bumper With The Pointed Stinger.
$550.00
-

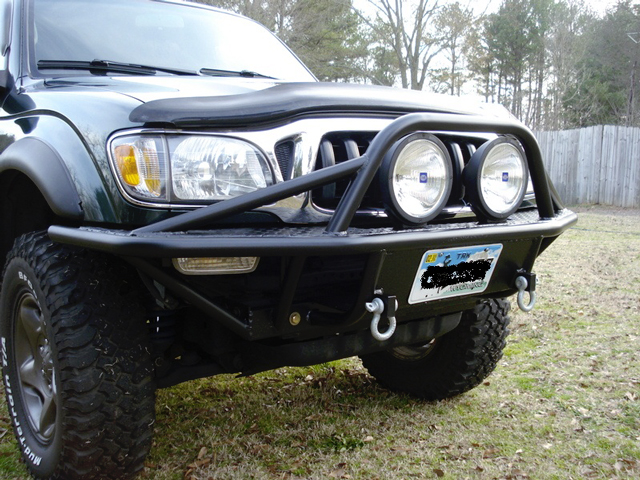

Toyota Baja Winch Bumper With 1 Diagnal Bars Off Stinger.
$550.00
-

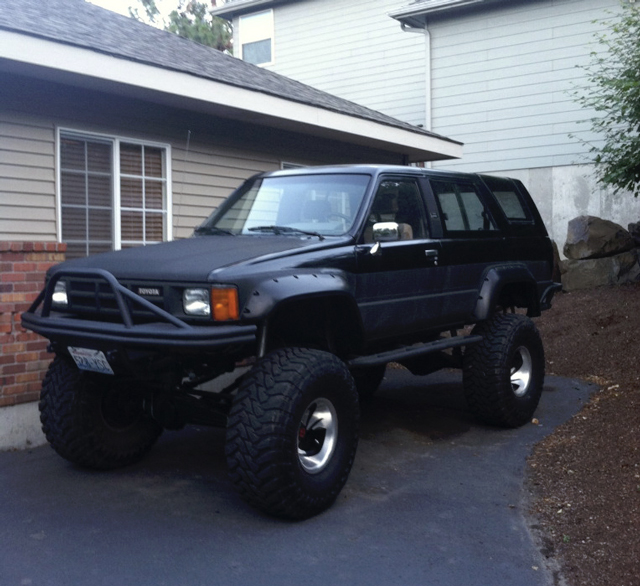

Toyota Baja Winch Bumper.
$625.00
-

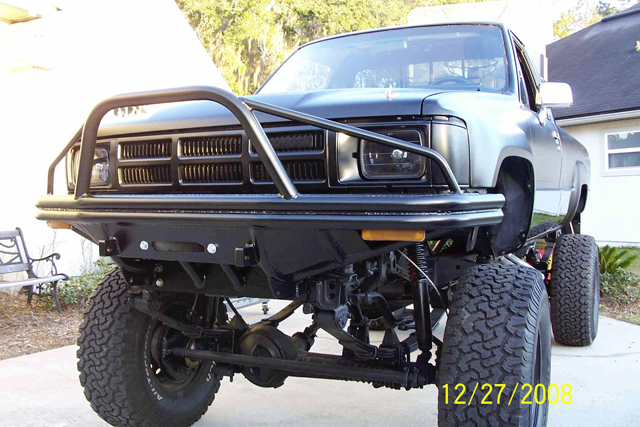

1989-95 Toyota Winch Bumper With Double Main Tube With Sheet Metal Inserts. Add $125.00 for Sheet Metal Inserts.
$750.00
-

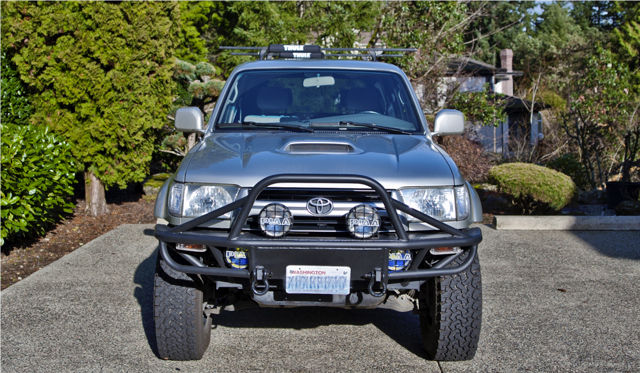

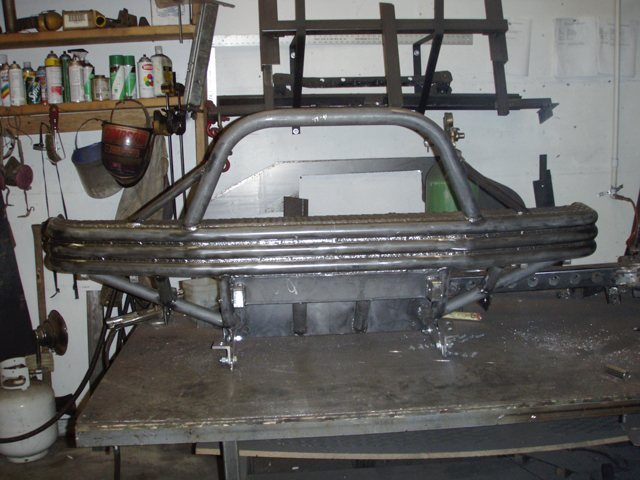

Triple Main Tube Baja Bumper. Add $75 Per Extra Tube.
$85.00
-

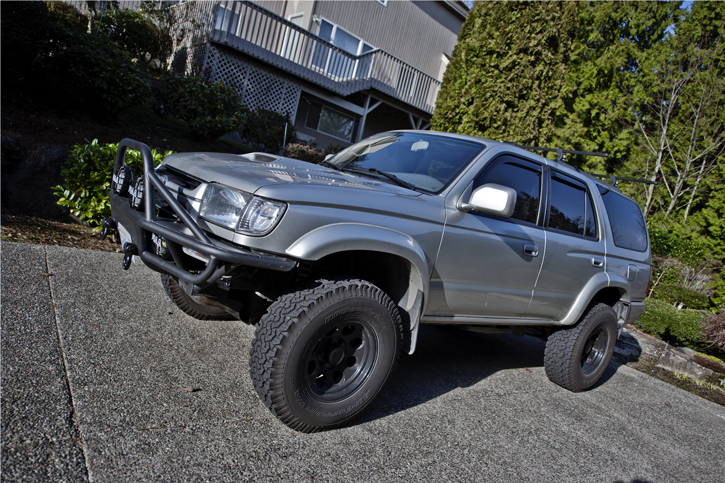

1992 Toyota Baja Bumper.
$550.00
-
BAJA BUMPER With 1.5 Diagnal Bars From Stinger.
$625.00
